ECO > Máquinas de embalaje > Máquina de envasado de bolsas con sellado cuádruple

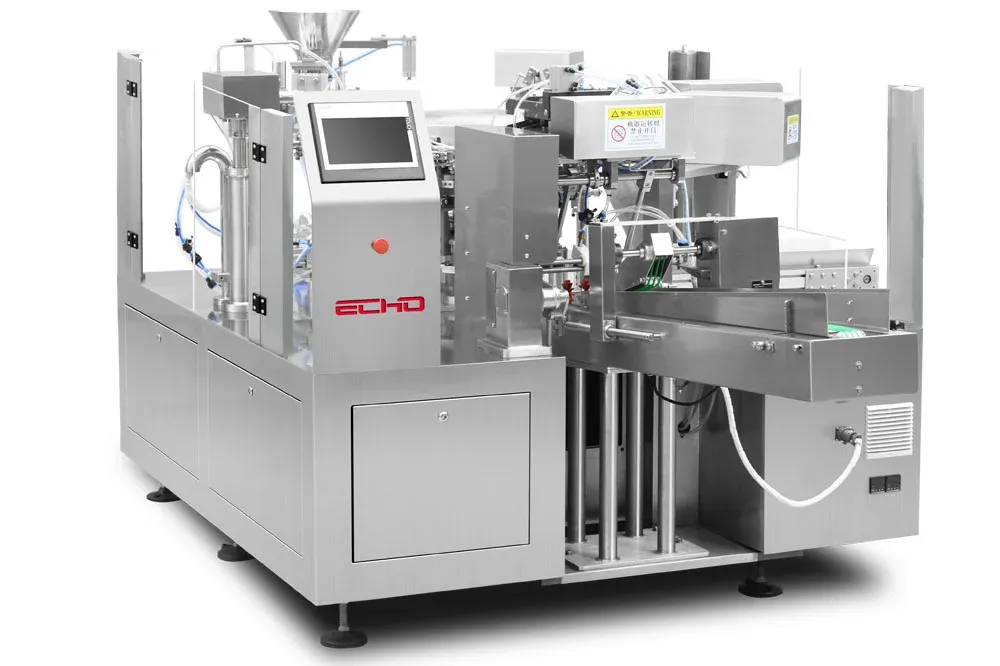

Máquina de envasado de bolsas con sellado cuádruple

MRM-8 1000
MRM-8 1000
MRM Series

Automatic Premade Pouch Rotary Filling & Sealing Machine

CapacidadUp To 40 BPM
Ancho de la bolsa100 – 250mm
4 – 9.8in
Volumen de llenado10 – 2500g
Longitud de la bolsa≤ 350mm
13,8 pulgadas

As a special premade bag, Quad Seal Bag is usually difficult to use our machine to automate packaging. However, through the efforts of engineers, we have changed the shape of the machine clip and the automated process, optimized the operation of the cam, and made the Quad Seal Bag Packaging Machine possible. Now the Quad Seal Bag Packaging Machine, which has all the advantages of our rotary packaging machine, has officially come out.

Características

  • Fully automatic rotary 8 station intermittent rotary preformed bag dispensing, opening and closing.
  • Versatile in design, easy to link up with other down stream packaging equipment such as liquid filler, multi-heads weigher, metal detector, check weigher, case sealer etc.
  • Strict mechanical safety standards to ensure stable operation of machinery and increase packaging speed.
  • Heavy parts are used to improve the durability of machinery.
  • The simple design of the control system’s touch screen facilitates the use of operators, and is simple and easy to use.
  • Improve the solution, reduce the cost for you.
  • The production line meets the requirements of food hygiene and is convenient to clean.
  • Control automático de una serie de procesos, desde la carga, el llenado y el sellado hasta el producto final.
  • The new improvement makes it possible to pack the Quad Seal Bag.
  • Automatic lubrication system.

Parámetro

MRM SeriesMRM8-200MRM8-250
Capacidadup to 40bags/minup to 40bags/min
Volumen de llenado10 – 2500g10 – 2500g
Pouch TypeBolsa con sellado cuádrupleBolsa con sellado cuádruple
Dimensión3050 * 1800 * 1500mm3100 * 1800 * 1500mm
Compress Air Requirement (supply by user)≥0.6m³/min≥0.8m³/min
Ancho de la bolsa100 – 200mm
4 – 7.9in		150 – 250mm
5.9 – 9.8in
Longitud de la bolsa≤ 350mm
≤ 13.8in		≤ 350mm
≤ 13.8in
Bag Thickness≤ 65 mm
≤ 2.6in		≤ 85mm
≤ 3.3in

La capacidad y el volumen de llenado dependen del estado del producto y del peso de llenado.

Estilo de bolso

Flat Bottom Pouch sample
Flat Bottom Pouch sample
comida para mascotas (2)
comida para mascotas (2)
fideos
fideos
comida para mascotas (2)
petfood
café
café
pet food
pet food

Industrias y soluciones

  • Líquido ——Detergent, Yellow rice wine, Soy sauce, Rice vinegar, Juice, Tomato paste, Peanut paste, Fruit paste, Chili sauce, Bean sauce, etc.
  • Gránulo —— Crystal MSG, Granule medicine, Capsule, Seeds, Raw Chemistry material, Sugar, Chicken essence, Melon seed, Nuts, Pesticides, Fertilizer, Feed, etc.
  • Polvo —— Flavoring, MSG, Milk powder, Glucose, Washing powder, Raw chemistry material, White sugar, Pesticides, Fertilizer, etc.
  • Sólido —— Candy, Red dates, Oatmeal, Chocolate, Cookies, Peanut, Green soybeans, Rock candy, Pastry, Commodity, Puffed food, etc.

Más información

Si aún tiene dudas sobre Echo Machinery, lea nuestra... ¿Por qué elegir la máquina de envasado de ECHO Machinery?

If you need vacuum packaging, welcome to choose our —— Máquina de envasado al vacío automática

If you don’t know whether you should choose Premade Pouch Packing Machine or Form Fill Seal Machine, read our —— Máquina de envasado de bolsas prefabricadas vs. máquina de formado, llenado y sellado: ¿Cuál debería elegir?

En cuanto al mantenimiento de la máquina, puede leer — Guía de mantenimiento de la máquina de envasado

Hemos recopilado una lista para responder algunas preguntas frecuentes de los clientes. Preguntas frecuentes
