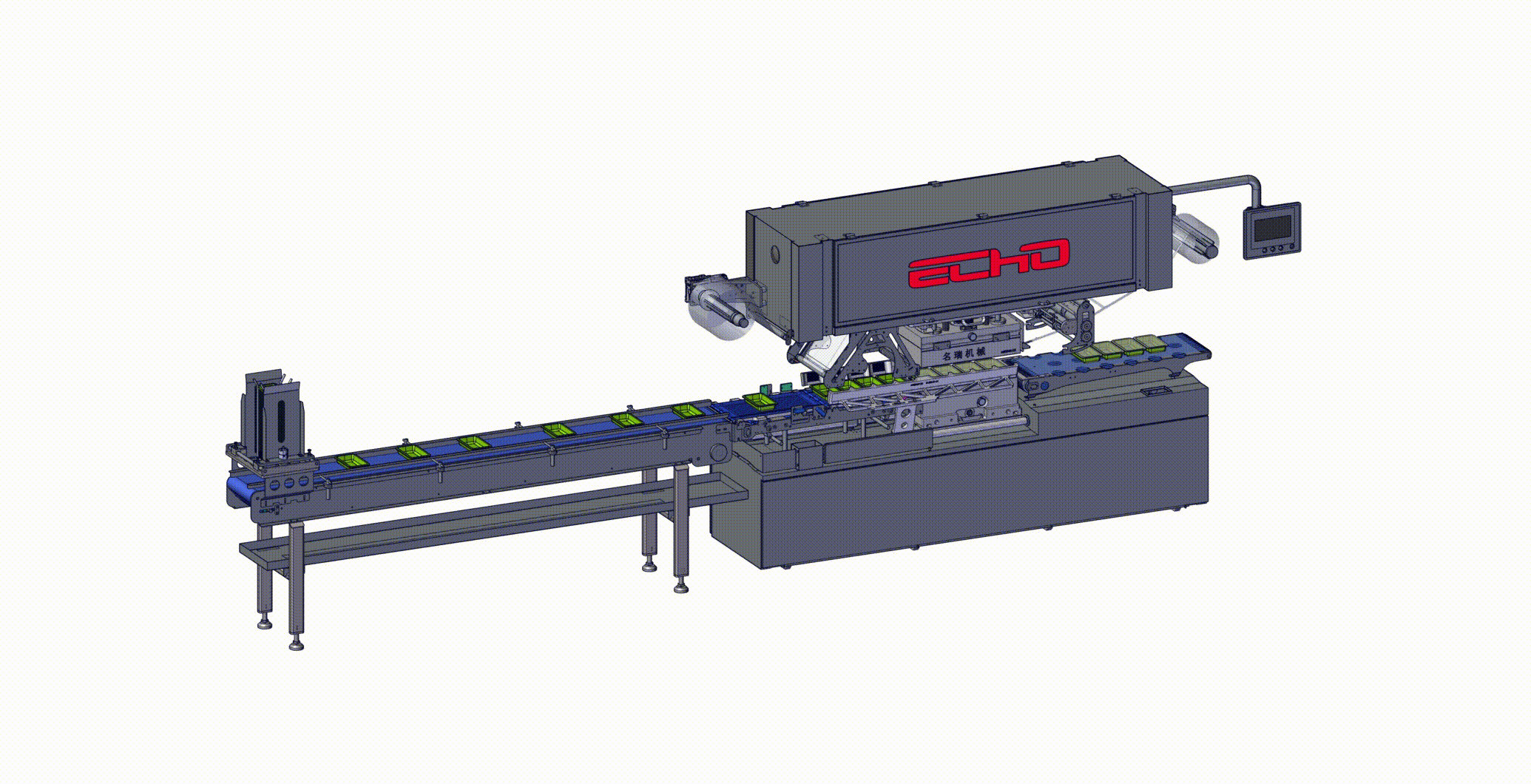

Automatic Tray Sealing Machine

TA-350

Automatic Tray Sealing Machine

CapacityUp To 12 CPM
Max Size620*380mm
24.4*15in
Tray
Height
10-120mm
0.4-4.7in
Sealing
Width
150-350mm
5.9-13.8in

Features

  • Fully intelligent system control, easy to access the production line and switch parameters.
  • There are two modes for sealing: pressure mode and time mode, can be freely selected.
  • Freely change mold size.
  • Compatible with a variety of tray materials, paper tray, aluminum tray, foam tray, etc.

Parameter

TA350
Capacity12 cycle/min
2880 tray/hour (calculated according 4 tary/cycle)
Maximum Mold Size620 * 380mm (size can be customized)
24.4 * 15in
Tary Height10 – 120mm
0.4 – 4.7in
Sealing Width150-350mm
5.9-13.8in
Conveyor Belt Height960mm
Size (L*W*H)3950 * 750 * 2100mm (2000kg)
Power(380v 3ph 50hz)18kw (Includes vacuum pump 7.5kw)

Capacity depends on the product status and tary size.
