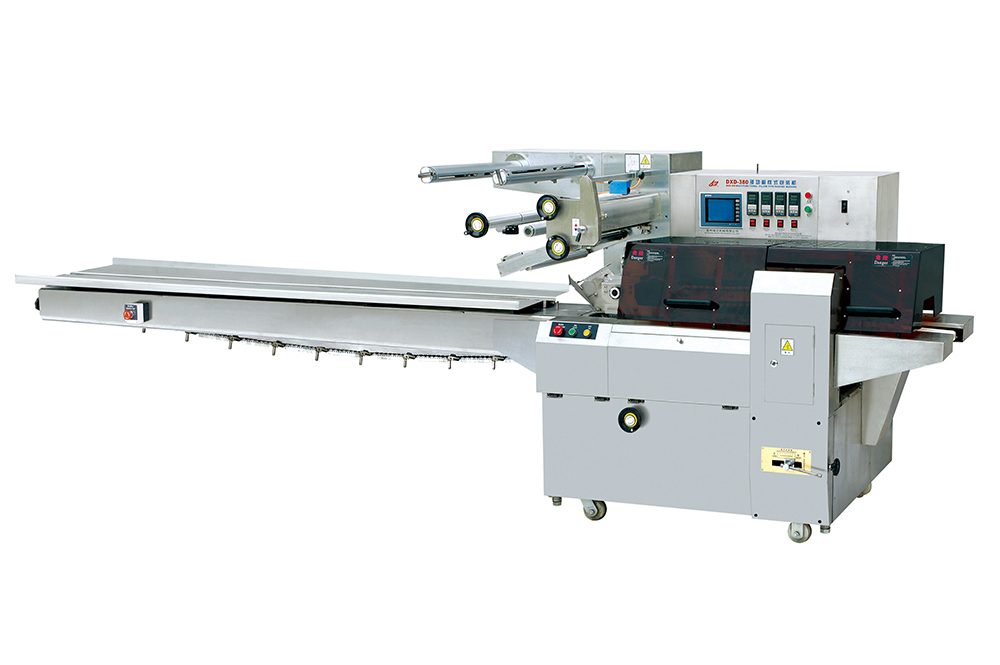

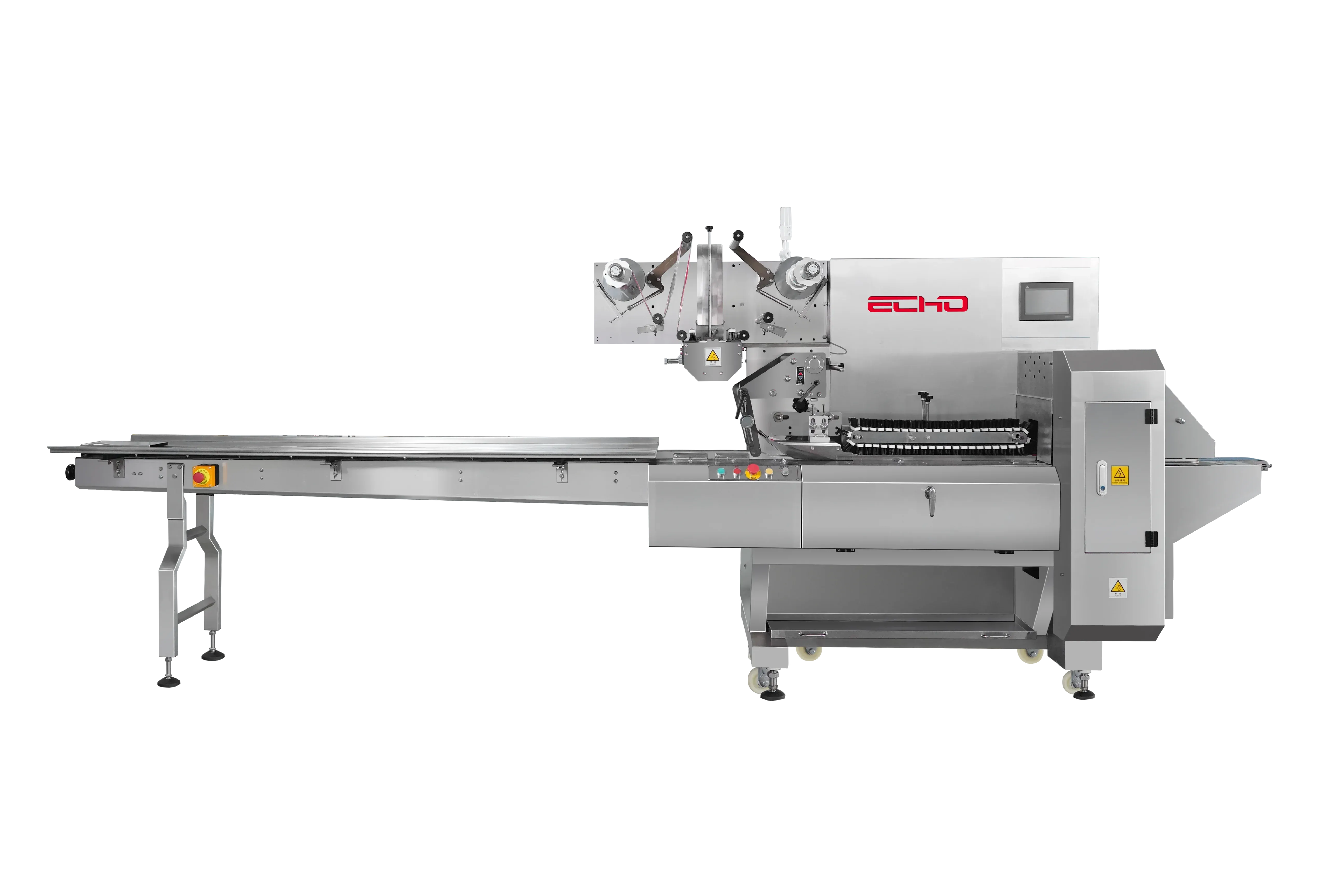

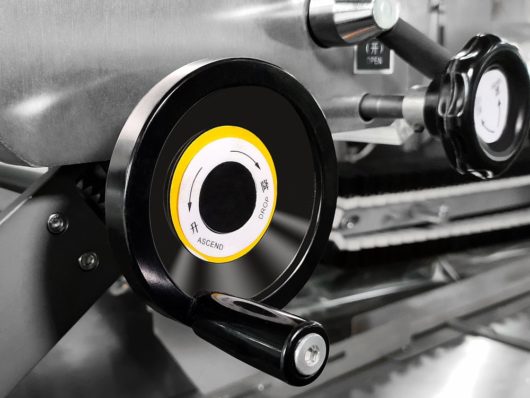

Horizontal Form Fill & Seal Machine

DXD Series

Horizontal Form Fill & Seal Machine

CapacityUp To
290 BPM
Bag Height35 – 250mm
1.4 – 9.9in
Bag Width60 – 450mm
2.4 – 17.7in
Bag Length20 – 120mm
0.8 – 4.7in

Horizontal Form Fill & Seal Machine(HFFS) is suitable for pillow-type packaging of big products. Such as quick-frozen food with trays, biscuits, hamburgers, instant noodles, articles for daily use, drug sundries, and so on.

It is a heat-sealing pillow with double frequency, automatic high-speed package machine for the biscuit, the chocolate, instant noodle, the drug and so on other goods, After the package, these goods are of beautiful appearance, strong sealing, health, and long storage.

Features

  • Use the servo Intelligent control, run with low noise, make comfortable environment.
  • The whole process of packaging is automatic: feeding, forming, filling and sealing, the machine achieves a high degree of automation.
  • The design with the humanoid, uses the industry’s touch screen, Intuitive display parameters, man-machine overlapping exchange way operation, menu operation, easy to operate.
  • The horizontal sealing and film is synchronization, the sealing is more reliable and artistic.
  • The length adjustment scope is extremely broad, suitable for packing many kinds of products.

Parameter

Pillow Type Packaging Machine

Square, Rectangle, Circular, Ellipse, and Flake, etc.

DXD-660DXD-420DXD-300
Max Capacity600 bags/min300 bags/min260 bags/min
Max Width of Film400mm
15.7in
300mm
11.8in
300mm
11.8in
Max Dia of Film350mm
13.8in
350mm
13.8in
350mm
13.8in
Bag Length55 – 200mm
2.2 – 7.9in
60 – 400mm
2.4 – 15.7in
90 – 450mm
3.5 – 17.7in
Bag Width25 – 100mm
1 – 3.9in
35 – 100mm
1.4 – 4in
40 – 140mm
1.6 – 5.5in
Bag Height< 70mm
< 2.8in
< 60mm
< 2.4in
< 80mm
< 3.1in
Dimension5600 * 1000 * 1700mm4300 * 850 * 1550mm4300 * 1000 * 1550mm
Total Power380V 50Hz 5.5kW220V 50Hz 3kW220V 50Hz 3kW

Candy Packaging Machine

Candies, Lollipops, and Similar Products.

DXD-1600DXD-1200
Max Capacity1600 pcs/min1200 pcs/min
Bag Length50 – 150mm
2 – 5.9in
50 – 80mm
2 – 3.1in
Packing Length12 – 50mm
0.5 – 2in
12 – 40mm
0.5 – 1.6in
Packing Width12 – 30mm
0.5 – 1.2in
12 – 30mm
0.5 – 1.2in
Packing Height5 – 18mm
0.2 – 0.7in
5 – 18mm
0.2 – 0.7in
Dimension3700 * 1650 * 1700mm2500 * 1350 * 1720MM
Total Power380V 50Hz 6kW220V 50Hz 4kW

Capacity & Filling Volume depends on the product status and filling weight.

Our machines can be equipped with different cutters and chains to suit different sizes of packaging. Depending on your material and packaging requirements, we will complete the configuration for you before shipment.

Industries & Solution

IQF food with tray, Biscuits, Hamburger, Instant noodles, Articles for daily use, Drug sundries and So on.

Working Principle

Complete Operational Principle

Put package 10 into the pushing chain track 9, entering into shaper 8. With the transmission of the feeding paper parts 1, 2, 3, 4, 5, 6, 7, the package paper is sent continuously and accurately into shaper 8. The package paper crosses the package material in the shaper through the act of shaper, making the package material in the shaper through the act of shaper, making the package paper pack on the article, and while the sending wheel 11 with brush 17 forward sends material, after being heated by heating copper 13 to make the vertical sealing complete. They continue going on forward through guide block 14, enter into the horizontal sealing cutter 16 to cut off the horizontal sealing, then finished go our product 15.

Shaper

  • Materials are sent unceasingly into the shaper.
  • Rollstock crosses the package goods through the guide board, then enters into the shaper and then the shaper packs the package paper together with goods, forming a pipe, and then they are carried forward.

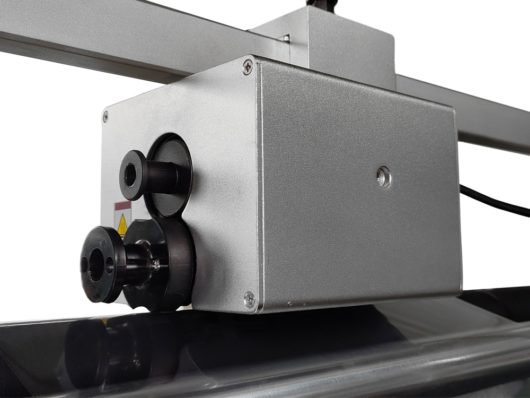

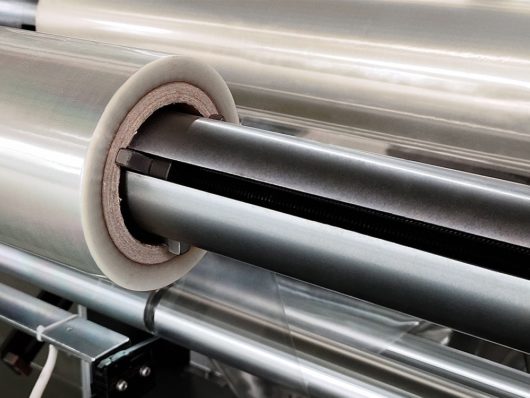

Feeding Parts

The dynamic of transmission system is driven through several transmission units to rubber roller through the double chain wheel, and finally complete feeding paper.

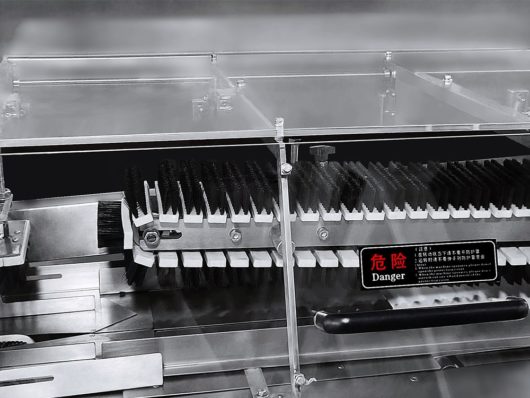

Heat-Sealing Parts

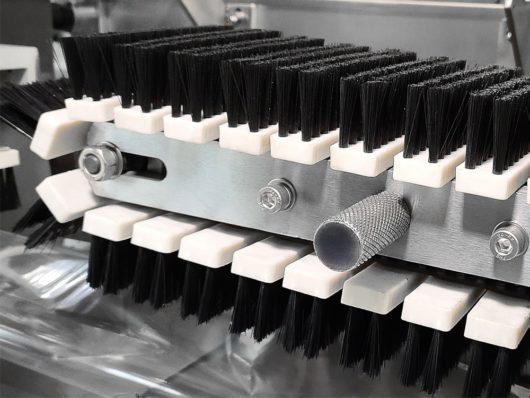

Feeding wheel catches piping package material carried carried out by the shaper. And they are sent to vertical sealing roll wheel to finish its vertical hot mixing after being heated by heating copper and the hair brushes, vertical sealing hemming-stitch pressure flat. The horizontal sealing scissors turn to the vertical heat mixed package materials that have been heated from a cross sealing through horizontal sealing head and vertical sealing line. Then they are cut off at the same time through the relative motion of cutting tools and hammer anvil to send out from the terminal.
