Circular Cup Filler

Circular Cup Filler

Cup Outer diameterΦ65 – 150mm
Cup Inner diameterΦ46 – 125mm
Cup Number32 -59

Circular Cup Filler is a semi-automatic feeding device for large pieces of product. The inserted product will rotate to a designated position and then be poke into the bag.

This video shows the Circular Cup Filler working with our Vacuum Packaging Machine

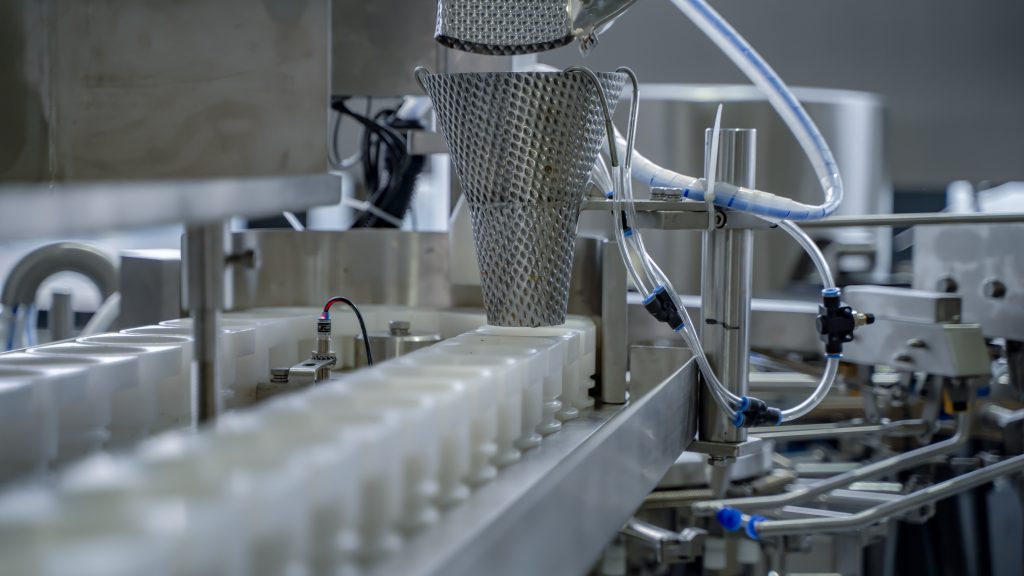

The product is put into the measuring cup manually, and the servo motor drives the groove wheel to rotate. The measuring cup moves along with the groove wheel on the feeding platform to complete the product conveying action.

Feeding component: servo motor drives the synchronous belt to make the head of the measuring cup move down and push the product in the measuring cup into the packing bag.

Cup Outer diameterCup Inner diameterCup Number
CF65-1600AΦ65mmΦ46mm49
CF65-1950Φ65mmΦ46mm59
CF65-1650Φ65mmΦ46mm49
CF86-1700Φ86mmΦ60mm38
CF120-1900Φ120mmΦ95mm32
CF150-2200Φ150mmΦ125mm34
